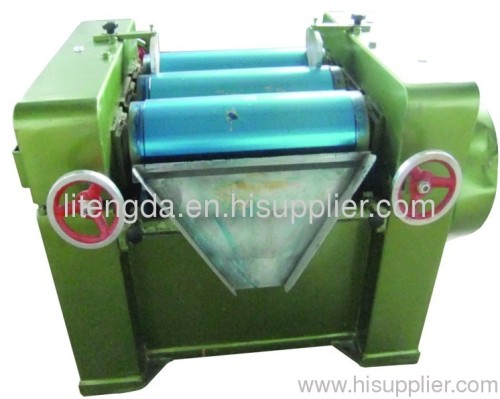

S150 Triple Roll Mill
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
S150 Triple Roll Mill
Production Capacity:
100sets Per Month
Delivery Date:
Within 15days after receiv...
Means of Transport:
Ocean
Packing:
Packed in standard wooden c...
Matrial of this triple roll mill:chilling cast alloy iron.
Partical size:2-10 micron after three-times grinding.
Product Description
1) Suitable for high viscosity material, such as paint, oil, coating, ink, pigment, plastic, food, etc.
2)The finished granularity comes to 2-10 um (testing with fineness scraper)
3)The roller is poured by the chilling cast alloy iron, has high degree of hardness and wear-resisting.
4) It effects in polishing through extruding and wearing in three rolls.
5) It is equipped with cooling system which is connecting with cooling water.
6) The diameter of roller: 150mm
Model | S150 three roller mill |
Diameter | mm | 150mm |
Length | mm | 300mm |
Speed | Slow | r/min | 25.3 r/min |
Mid | r/min | 63.2 r/min |
Fast | r/min | 152 r/min |
Power | kw | 2.2kw |
Granularity | u. m. | 2-10um/3Times |
Rotio of speed | kg/h | 1: 2.6: 6 |
Dimension | mm | 820× 800× 920mm |
Weight | kg | 500kg |
