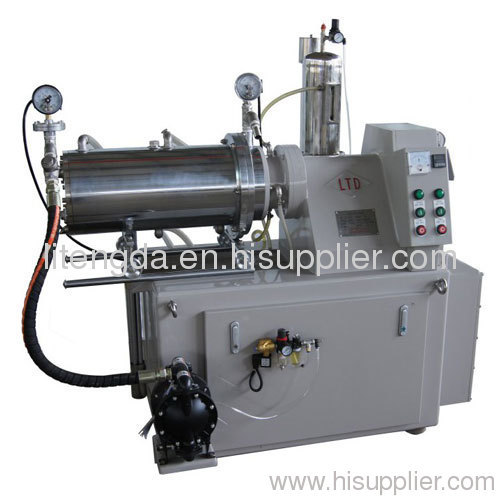

Dics sand mill from China manufacturer - Shenzhen Litengda Machines & Equipments Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LTD2015

Production Capacity: 100sets Per Month

Delivery Date: Within 15-20 days after re...

Main moto Power: 15/22kw

Medium Fill: 10-17L

Means of Transport: Ocean

Packing: Packed in standard wooden c...

Cylinder Capacity: 20L

Ratational Speed: 1020r/min

Pump Delivery: 0-17L/Min

1)double machenical seal adopted on this sand mill
2)partical size of 2-10 microns
3)Motor power:380V,50Hz,3P/220V-60Hz-3P(can be customized)

Detailed description:

Application

LTD sand mill is the main equipment for producing suspension slurry of super fine particles through wet grinding and dispersion. It is widely applied to industries which require continuous grinding and dispersion of mixed suspension slurry of solid phase and liquid phase such as paint, ink, dyes, pigment, electronics, agriculture, correction fluid and cosmetics etc.

Mechanical seal

LTD horizontal sand mill adopts double-end sealing mechanism and intoduces pressure and cooling specific devices.It is the most complete and reliable bearing seal form all over the world,with long life cycle.

Grinding cylinder

1.Material:1)Inner cylinder:carbon steel(65Mn steel),stainless steel,special wear assistant steel or composite material

2)Outer cylinder:By chrome-plated on the surface of carbon tube

3)Cooling water jacket:chilled steel

2.Thickness:6mm

Grinding discs

1.Material:1)Alloy steel quenching,the hardness can be up to HRC50

2)Stainless steel material:SUS304,SUS316 or SUS316L

3)Special platic material 2.Numbers:12pcs/set 3.Thickness:10mm

Grinding medium	Zirconia beads for recommendation
Transmission pump	1''imported pneumatic diaphragm pump
Electrical control	There's power-off protections for maximum operation temperature and pressure.
Explosion-proof devices	Temperature meter,pressure meter and electrial control cabinet

2.Technical parameters:

Motor power:380V,50Hz,3P/220V-60Hz-3P(can be customized)
